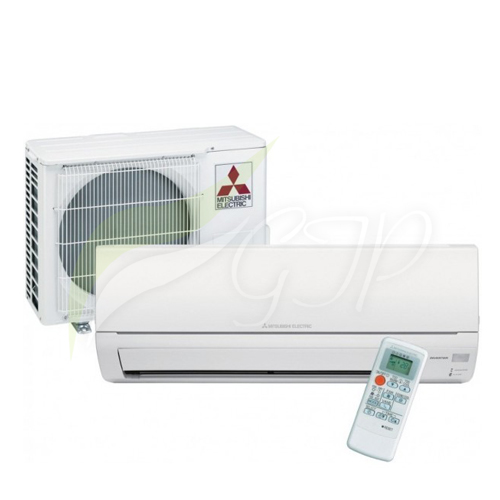

Mitsubshi AC

itsubishi Electric’s range of high specification, flat panel wall mounted models make use of inverter technology,
whilst providing extremely good value for money, costing approximately 20% less than the MSZ-SF equivalent.
These units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved SCOP/SEER figures.
INDOOR
Heating Capacity (kW) (nominal) 3.6 (0.9 – 4.8)
Cooling Capacity (kW) (nominal) 3.15 (1 – 3.7)
Heating Capacity (kW) (UK) 2.99 (0.74 – 3.98)
Cooling Capacity (kW) (UK) 3.12 (0.99 – 3.67)

SHF (nominal and UK) 0.87

COP / EER (nominal) 3.62 / 3.03
SCOP / SEER 3.8 / 5.1
Energy Label (nominal) A / B

Airflow (m³/min) (Heating) – Lo-Mi-Hi-SupHi 3.4 – 5.5 – 7.5 – ?
Airflow (m³/min) (Cooling) – Lo-Mi-Hi-SupHi 3.8 – 5.7 – 7.8 – ?

Pipe Size Gas (mm [in]) 9.52 (3/8)
Pipe Size Liquid (mm ([in]) 6.35 (1/4)

Sound Pressure Level (dBA) Heating – Lo-Mi-Hi-SupHi 23 – 30 – 37 – 44
Sound Pressure Level (dBA) Cooling – Lo-Mi-Hi-SupHi 22 – 31 – 37 – ?
Sound Power Level (dBA) Cooling 60

Dimensions (mm) Width x Depth x Height 799 x 232 x 290

Weight (kg) 9

Electrical Supply 220-240V, 50HZ
Phase SINGLE

Fuse Rating (BS88) – HRC (A) 10

Interconnecting Cable No. Cores 4

OUTDOOR
Sound Pressure Level (dBA) Heating / Cooling 50 / 50
Sound Power Level (dBA) Cooling 64

Weight (kg) 25

Dimensions (mm) Width x Depth x Height 699 x 249 x 530

Electrical Supply FED BY INDOOR UNIT
Phase SINGLE

System Power Input (kW) – Heating / Cooling (nominal) 0.995 / 1.04
System Power Input (kW) – Heating / Cooling (UK) 0.9 / 0.83

Starting Current (A) 4.9
System Running Current (A) [MAX] – Heating / Cooling 4.8 / 4.9 [6.5]

Fuse Rating (BS88) – HRC (A) 10
Mains Cable No. Cores 3

Max Pipe Length (m) 20
Max Height Difference (m) 12

Charge R410A (kg) – (pre charged length) 0.72 (7)
1 Year Manufacturer Warranty
1.0 Ton
